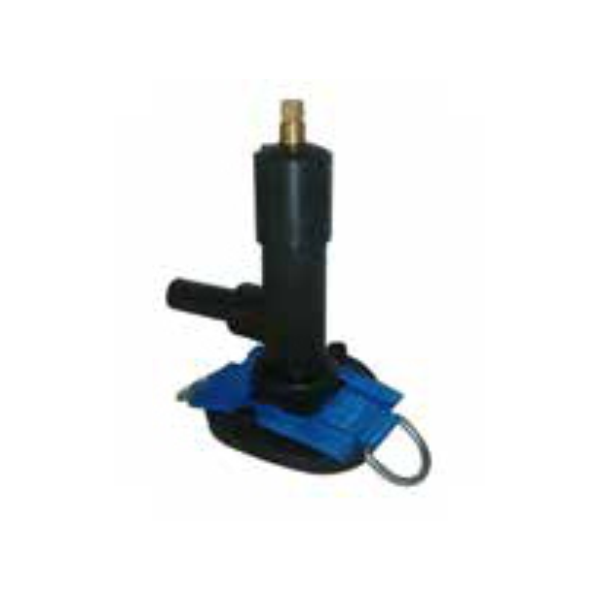

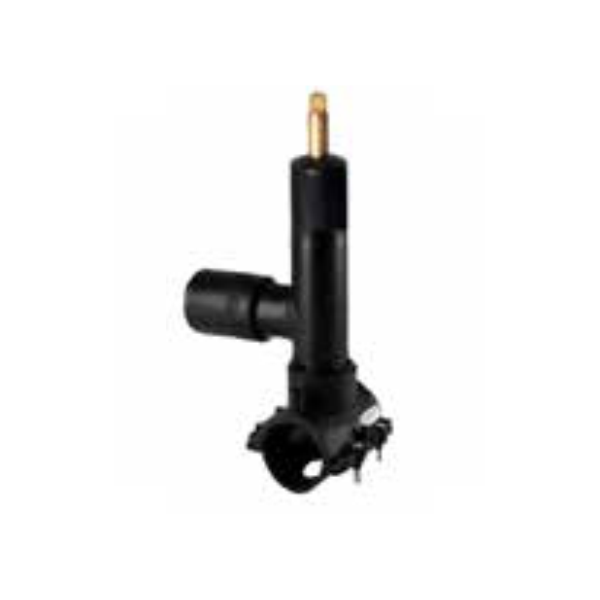

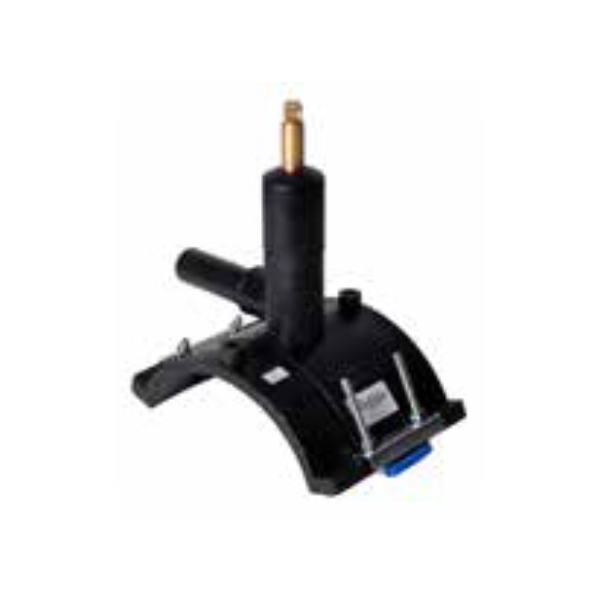

Fitting HDPE Electro Fusion Tapping Tee (VS Type)

❮ ❯

Categories	Fitting HDPE Electro Fusion
Brand	AMD
Model	Tapping Tee (VS Type)
Material	PE 100
Warna	Hitam
Application	Water (SDR11 PN16), Gas (SDR11 PN10)

Spesifikasi Teknik

Fitur

Spesifikasi

Dokumen

Opsional

D	d	L	H	Box Sizes	Nos/Box	Kg	Type
63	20	50	160	40x30x30	10	0.85	A
63	25	50	160	40x30x30	10	0.85	A
63	32	75	160	30x40x30	10	0.87	A
63	40	75	160	40x30x30	10	0.88	A
63	50	93	270	30x40x30	6	2.25	B
63	63	96	270	30x40x30	6	2.35	B
75	20	58	160	30x40x30	10	0.95	A
75	25	58	160	30x40x30	10	0.95	A
75	32	58	160	30x40x30	10	1.00	A
75	40	58	160	30x40x30	10	1.01	A
75	50	93	270	30x40x30	6	2.27	B
75	63	93	270	30x40x30	6	2.28	B
90	20	40	215	60x40x30	10	1.84	A
90	25	50	215	60x40x30	10	1.70	A
90	32	75	215	60x40x30	10	1.74	A
90	40	82	215	60x40x30	10	1.75	A
90	50	85	250	60x40x30	8	2.68	C
90	63	85	250	60x40x30	8	2.69	C
110	20	40	215	60x40x30	8	1.80	A
110	25	57	215	60x40x30	8	1.85	A
110	32	71	215	60x40x30	8	1.90	A
110	40	72	215	60x40x30	8	1.95	A
110	50	75	250	60x40x30	8	2.70	A
110	63	75	250	60x40x30	8	2.73	A
125	20	71	215	60x40x30	8	2.01	A
125	25	72	215	60x40x30	8	2.02	A
125	32	71	215	60x40x30	8	2.05	A
125	40	72	215	60x40x30	8	2.09	A
125	50	77	250	60x40x30	8	2.70	C
125	63	65	250	60x40x30	8	2.73	C
140	20	71	215	60x40x30	8	2.10	C
140	25	72	215	60x40x30	8	2.11	C
140	32	71	215	60x40x30	10	2.12	C
140	40	72	215	60x40x30	10	2.13	C
140	50	75	250	60x40x30	6	2.88	C
140	63	75	250	60x40x30	6	2.90	C
160	20	40	215	60x40x30	8	2.15	C
160	25	50	215	60x40x30	8	2.16	C
160	32	67	215	60x40x30	8	2.17	C
160	40	67	215	60x40x30	8	2.18	C
160	50	75	250	60x40x30	6	2.92	C
160	63	75	250	60x40x30	6	2.94	C
180	20	40	215	60x40x30	8	2.19	C
180	25	50	215	60x40x30	8	2.20	C
180	32	74	215	60x40x30	8	2.21	C
180	40	74	215	60x40x30	8	2.22	C
180	50	74	250	60x40x30	8	2.92	C
180	63	74	250	60x40x30	8	2.94	C
200	20	40	215	60x40x30	8	2.23	C
200	25	50	215	60x40x30	8	2.24	C
200	32	75	215	60x40x30	8	2.25	C
200	40	75	215	60x40x30	8	2.26	C
200	50	75	250	60x40x30	8	2.85	C
200	63	75	250	60x40x30	8	2.86	C
225	20	40	215	60x40x30	8	2.23	C
225	25	50	215	60x40x30	8	2.24	C
